Base station verticals installed in high wind speed areas must be guyed.
Please don't force coaxial cable through walls (especially brick walls).
Please do not over-tighten any antenna screws or apply any glue.
Most Comet products ordered from us ship same/next day!
Prices are confirmed for antennas currently in stock.
Freighting or mailing of antennas is at extra cost.
Prices are subject to change without notice or
obligation due to exchange rate variations.
Limited stock of some Comet products.

Please don't instantly assume a new antenna is faulty, as <0.1% of
new antennas (<0.01% for Japanese antennas) are faulty from new!
Antenna faults are actually due to the installation ~80% of the time!

Where possible, please ensure coaxial cable lengths are in multiples
of a 1/2-wavelength (not in odd multiples of 1/4-wave lengths) on
every band, taking into account the coaxial cable's velocity factor.

We don't recommend mounting antennas >1m long on heavy vehicles!
We don't recommend mounting >1m long antennas on diesel vehicles.

PLEASE connect each section of multi-section VHF/UHF
verticals' thin inner brass tube to the next section's thin
inner brass tube to ensure the antenna works properly!!

Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by email; radioandrews@hotmail.com or by mail;
P.O. Box 240, Pendle Hill, NSW, 2145.

Comet handheld/portable transceiver antennas
Type	Price $(AUD)

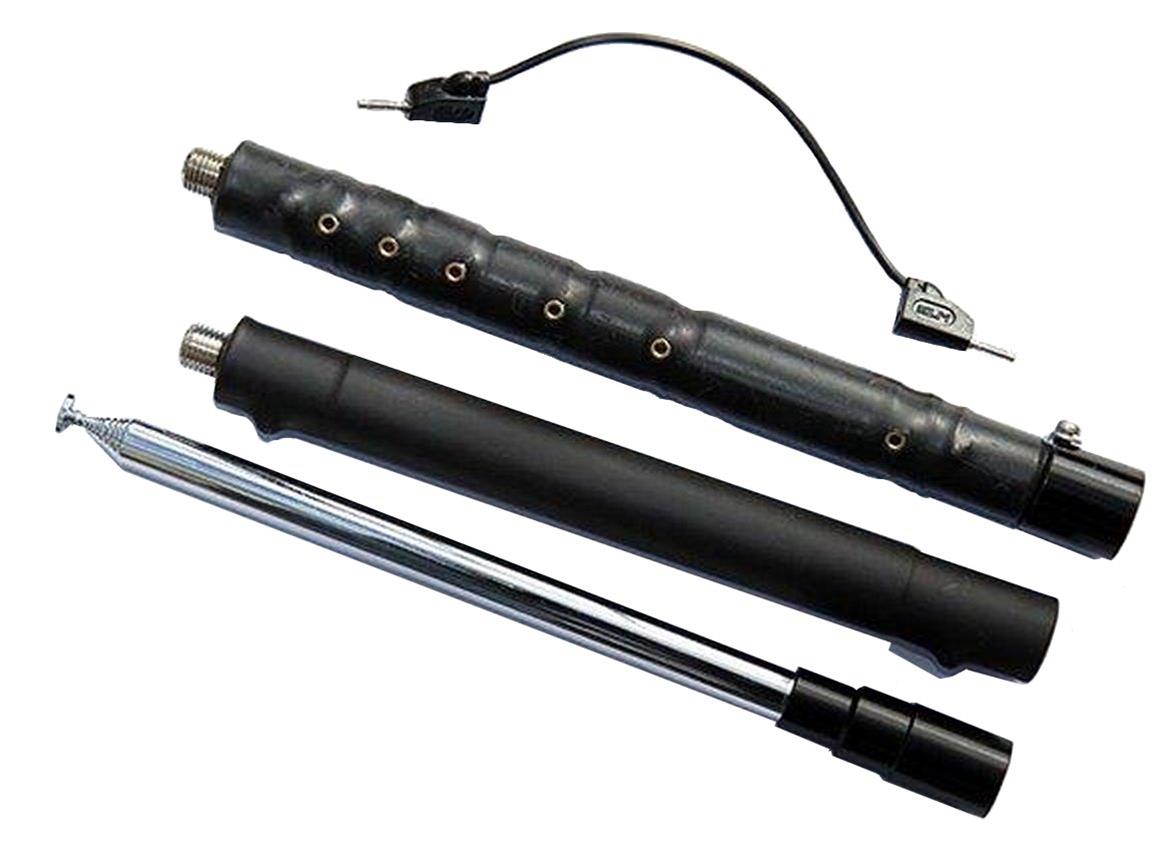

NEW MODEL PACKAGE NOW COVERS TEN (10) BANDS!! Model; COMET HFJ-350MTOYBX (TOYBX = Toybox) Ideal for IC-705, FT-817/818, etc., portable MF+HF+6m radios... Covers 1.8MHz to 50MHz amateur bands (160m to 6m bands)! This new PORTABLE 10-band antenna package is 1.92m long. Amateur bands covered; 160m, 80m, 40m, 30m, 20m, 17m, 15m, 12m, 10m & 6m. RF power ratings; 160m; 50W average/80m; 75W SSB pep/ 40m~6m bands; 100W SSB pep. This portable 10-band telescopic whip antenna package comprises four (4) main sections. One section, the "base coil", is fitted with an integrated PL-259. This "base coil" is a MULTI-BAND tapped coil to which the included wander lead would be fitted for selecting the 10MHz, 14MHz, 18MHz/21MHz, 28MHz or 50MHz band. Package includes 1.8Mhz/160m and 3.5MHz/80m coils! The included telescopic whip antenna always fits on top of the antenna once the appropriate coil & tapping is selected for the frequency/band desired. The telescopic whip allows fine frequency adjustment on all above bands. A long (minimum length of 9m) counterpoise multi-stranded plastic coated wire should be fitted to the earth lug that is located on the outside (earth) of the antenna's PL-259. We recommend an earth stake be permanently fitted to the counterpoise wire to enable better RF earthing/grounding. The HFJ-350MTOYBX has an integrated PL-259 plug, multiple taps and wander lead with banana plug fitted. The HFJ-350MTOYBX's telescopic whip enables tuning to all amateur MF/HF bands and the 6m band. Rated to accept RF up to 50W average on 160m (1.8MHz/1.9MHz), 75W SSB pep maximum on 80m (3.5MHz) and up to 100W SSB pep maximum on the 40m to 6m (7~50MHz) amateur bands. Change bands by selecting the appropriate coil, then plug one end of the wander lead's banana plug into the "common terminal" and the other end into the desired band tap & adjust the telescopic whip's length for lowest SWR. It is recommended to use BOTH an antenna tuner and counterpoise with this antenna if you wish to obtain the best possible results. A counterpoise (earth) wire of at least 9m in length should be fitted to the antenna's earth lug that is fitted to the antenna's PL-259 plug. This is a 1.92m long, 1/4-wave multi-tapped, base-loaded antenna. Note; this antenna is NOT suitable for mobile vehicular operation. COMET HFJ-350MTOYBX 160m~6m portable kit set NOT recommended or suitable for mobile operation!	$369.00 PLENTY IN STOCK! NEW MODEL!!
SMA-501 Dualband whip, 2m/70cm. 4.6cm long	$59.00 Sold out!
SMA-24 Dualband whip, 2m/70cm, 43cm long	$49.00 Plenty in stock!

Comet TRIBAND 6m, 2m, 70cm base station antenna! GP-15 TRIBAND high gain vertical...$499 AUD Gain; 6m 3dBi, 2m 6.2dBi, 70cm 8.6dBi Plenty in stock! ************************************ Comet TRIBAND 2m, 70cm, 23cm base station antenna! GP-98N TRIBAND high gain vertical...$599 AUD Gain; 2m 6.5dBi, 70cm 9dBi, 23cm 13.5dBi Plenty in stock! ************************************ Comet 80m~10m + 6m base station antenna! Newly upgraded model! CHA-250HD 3.5~57MHz antenna...$1199 AUD In stock!! Updated base station antennas list below...
Type	Price $(AUD)

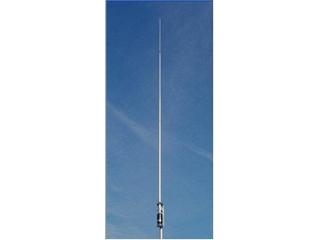

CHA-250HD Broadband HF+6m vertical. Transmit frequency range; 3.5MHz-57MHz. SWR typically <1.6:1. Receive range; 2MHz~90MHz. Integrated 6:1 balun within the base section which now has a finned heatsink for improved heat dissipation. Maximum RF power; 250W. Length; 7.13m. Weight; 3.2kg. Mast diameter accepted; 30mm~72mm. SO-239 fitted. New model CHA-250HDhas a solid top whip section for improved wind handling. Has an integrated SO-239/M/UHF-F socket fitted.	$1199.00 In stock! Air-courier shipment HERE!
GP-6M DUALBAND vertical covers 2m/70cm with 6.5dBi/9.0dBi gain. 3.07m long. Rated to 200W SSB (combined). SO-239 fitted. Receive coverage; 100~170MHz & 350~470MHz. Two-section antenna. Has SO-239/M/UHF-F socket fitted. N-type socket version is available at A$30 extra. Price is subject to confirmation! Price is based on air couriering from USA! Deposit requested only when availability is confirmed!	$549.00 Sold out! Please place your order with deposit!
GP-15 TRIBAND vertical covers 6m/2m/70cm with 3dBi/6.2dBi/8.6dBi gain. 2.4m long. Single-section antenna. Accepts up to 100W RF power. Has SO-239/M/UHF-F socket fitted.	$499.00 IN STOCK! Air-courier shipment HERE!
GP-21 23cm band base/repeater vertical covers 1240~1300MHz with 14.9dBi extra-high gain. 2.42m long. Single-section antenna. Has N-F socket fitted. Accepts up to to 100W SSB/FM.	$449.00 PLENTY IN STOCK!
GP-95N TRIBAND vertical covers 2m/70cm/23cm bands with 6dBi/8.6dBi/12.8dBi gain. Yes, high gain on 23cm! 2.42m long. Max. SSB RF power levels; 300W 2m, 300W 70cm, 100W 23cm. Weighs 1.3kg. Two-section antenna. N-F socket fitted. Accepts 30~62mm diameter mast. Price is subject to confirmation! Price is based on air-couriering from USA! Deposit requested only when availability is confirmed!	$599.00 Sold out! Please place your order with deposit!

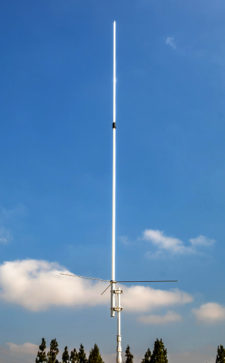

GP-98N TRIBAND vertical covers 2m/70cm/23cm bands with 6.5dBi/8.6dBi/13.5dBi gain. Very high gain on 23cm! 2.95m long. Max. SSB RF power levels; 300W 2m, 300W 70cm, 100W 23cm. Weighs 1.5kg. Two-section antenna. N-F socket fitted. Accepts 30~62mm diameter mast.	Now $599.00 PLENTY IN STOCK!

Comet mobile stainless steel (s/s) whip antennas SBB-5, 2m/70cm, 95cm long, mobile antenna SBB-7, 2m/70cm, 1.4m long, mobile antenna SB-15, 6m/2m/70cm, 1.53m long, mobile antenna We don't recommend mounting antennas >1m long on heavy vehicles! We don't recommend mounting >1m long antennas on diesel vehicles. Please call us for availability of most Comet mobile type whip antennas
Type	Price $(AUD)
CHA-260 7MHz-57MHz broadband mobile antenna, 2.25m long	P.O.A.
CA-UB1L Mounting/connection bracket; for use with CHA-260 above...	P.O.A.
CX-702 6m/2m/70cm 2.15dBi/6dBi/8.4dBi, 2.1m - extra long mobile!	P.O.A.
HV-R Ground plane radials coil set for UHV-6, 95cm long	P.O.A.
L-3.5 80m band loading coil for UHV antennas	P.O.A.
L-14 20m loading coil	P.O.A.
L-18 17m loading coil	P.O.A.
SBB-5 Dualband 2m/70cm, 3dB/5.5dB, 0.95m long	P.O.A.
SBB-7 Dualband 2m/70cm, 4.5dB/7.2dB, 1.4m long	P.O.A.
SB-15 Triband 6m/2m/70cm, 2.15dBi/4.5dBi/7.2dBi, 1.53m	$149.00 Plenty in stock!
SB-94 Triband 2m/70cm/23cm 2.1/5.1/7.2dB	P.O.A.
SB-97 Triband 2m/70cm/23cm 3.0/6.8/9.6dB	P.O.A.

Comet CST-30 antenna mounting bracket and coaxial cable assembly to suit IC-705/FT-817/FT-818 radios. Comet base station discone antennas.
Type	Price $(AUD)

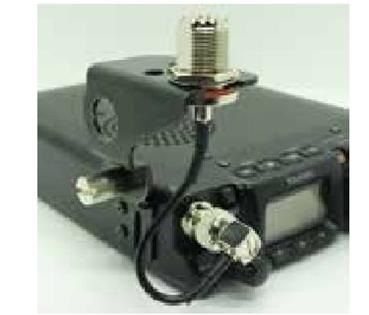

COMET brand CST-30 antenna mounting bracket complete with BNC plug, coax cable and SO-239 antenna socket assembly! Ideal for IC-705 & FT-817ND, FT-818ND transceivers...A$129. Transceiver & antenna NOT included! Not a Icom/Yaesu product.	$129.00
COMET brand CST-30 antenna mounting bracket complete with BNC plug, coax cable and SO-239 antenna socket assembly! Ideal for FT-817ND, FT-818ND & IC-705 transceivers...A$129. Transceiver & antenna NOT included! Image will be upgraded soon. Not a Yaesu/Icom product.	$129.00
DS-150S Covers 25MHz-1.5GHz on receive. Transmittable across 50MHz to 1.3GHz amateur bands. 1.4m high.	$219.00 Place your order with deposit
DS-3000 Covers 75MHz-3GHz on receive. Transmittable across 144MHz to 1.3GHz amateur bands. 86cm high.	$199.00 Place your order with deposit

Many Comet accessories listed here are in stock!
Type	Price $(AUD)

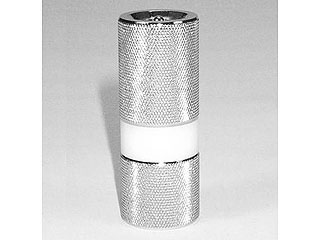

AD-35M Special 3/8"-24tpi female thread to PL-259, antenna adaptor. Price and availability subject to confirmation!	$69.00 Sold out! Place your order with deposit! Price and availability subject to confirmation!
CF-416A Diplexer 1.3-170MHz(800W)/350-540MHz(500W) MJ, MP+MP.	$149.00 In stock!

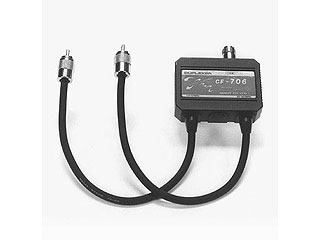

CF-706 Diplexer, 1.3-57MHz/75-550MHz, 0.4dB, 350W pep SSB rated. Has SO-239 input/common and a PL-259 on each of its two leads.	$149.00 Plenty in stock!

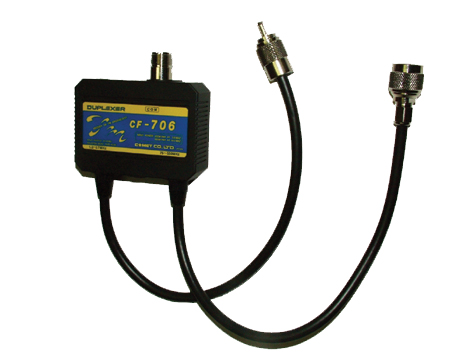

CF-706N Diplexer, 1.3-57MHz/75-550MHz, 0.4dB, 350W SSB rated. Has SO-239 input/common, PL-259 on its 1.3-57MHz lead and N- plug on its 75-550MHz lead.	$149.00 Plenty in stock!

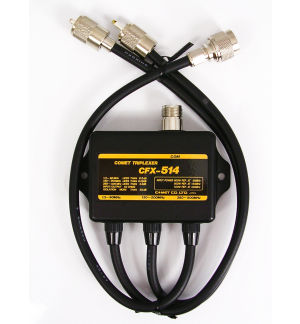

CFX-514N Triplexer, 1.3-90MHz/130-200MHz/380-500MHz, 0.4dB, 350W pep SSB rated. Has SO-239 input/common, PL-259 on its 1.3-90MHz lead, PL-259 on its 130-200MHz and N- plug on its 380-500MHz lead	$169.00 Plenty in stock!
CF-30MR HF Low pass TVI filter. 1kW SSB pep RF power rated. Has 30MHz "cut-off" frequency. Price subject to confirmation. Filter is subject to availability!	$169.00 SOLD OUT! We're now trying to obtain more CF-30MR filters!
CF-50MR HF-6m low pass filter. 1kW SSB pep RF power rated. Has 55MHz "cut-off" frequency. Price subject to confirmation. Filter is subject to availability!	$199.00 Special order with deposit required. Subject to availability!
CK3M5B SO-239 socket base/5m lead/PL-259 assembly (Compare to Avair AV-KE which is priced at only $29.00).	$69.00 Special order required

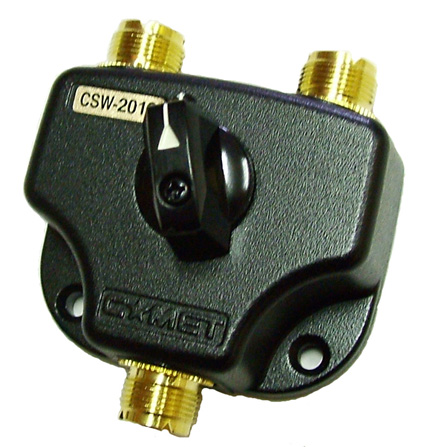

CSW-201G DC~600Mhz 2-position coaxial antenna switch handles up to 1.5kW pep (below 30MHz). Has gold anodised SO-239 sockets and only 0.12dB loss up at 600MHz.	Now $119.00 In stock!
CSW-201GN DC~1,800Mhz 2-position coaxial antenna switch handles up to 1.5kW pep (below 30MHz), up to 500W pep across 30-600MHz and 150W pep across 600-1,800MHz. Has only 0.12dB loss. Three gold flashed N-type chassis mount sockets fitted.	$149.00 Place your order Subject to availability
D21M DC~600Mhz 100W (SSB pep) dummy load. Has UHF socket	$69.00 In stock!
Limited or no stock of some Comet accessories	Call for update!
