TET-Emtron, MACO (USA), M2 (USA)
and Maldol antennas & accessories


Base station verticals installed in high wind speed areas must be guyed!
Please note that sea freight, air freight and air courier charges regarding
shipments from the USA have increased dramatically since late 2022!!
Please don't instantly assume a new antenna is faulty, as <0.1% of
new antennas (<0.01% for Japanese antennas) are faulty from new!
Antenna faults are actually due to the installation >80% of the time!
All M2 products are available only on a deposit-with-order basis.
Prices subject to change due to exchange rate variations.
Very limited or no stock of listed Maldol products.
Freighting or mailing antennas is at extra cost.
One year warranty on all products below.

NEW! TET-EMTRON TEV-1S HF compact broadband vertical!!

Pricing of USA-sourced products is based on sea-freighting
 from the USA. Air-couriering/air-freighting is at extra cost.

Please order by phone; 02 9688 4301/9636 9060/9896 8972,
by email; radioandrews@hotmail.com or by mail;
P.O. Box 240, Pendle Hill, NSW, 2145.

Page updated 10-10-24


TET- Emtron HF antennas

Proudly made in Australia!




TEV-1 broadband HF vertical

$279 AUD

The TET-Emtron model TEV-1 is a 8.5 metre long vertical broadband HF 80m~10m antenna. Requires an antenna tuner and/or a  balun of 4:1 impedance ratio or greater to reduce SWR across HF.

It comprises six 1.5m long sections of aluminium tubing, aluminium mounting bracket and hardware.

All stainless steel hardware and rugged aluminium construction ensure long and reliable operation.

As the packed length of the TEV-1 is longer than 1.05m long, at about 1.55m length, Australia Post will not accept it. We must courier or road freight the TEV-1 to you. Ask us for a freight quote to your location...

The TEV-1 should be mounted on top of a metal pole. The antenna's height may be set from 30cm (one foot) above ground level to virtually any height above ground.

In the case of mounting the TEV-1 above a metal roof, it should be mounted at a height of at least 2m above the metal roof in order to reduce excessive ground reflection which causes higher radiation angle!

The minimal compromise height above ground for a vertical antenna covering 80m to 10m bands is 3m.

This is because on the 80m band the optimum radiation angle is ~30 degrees and this occurs when the vertical is mounted at, or just above ground level.  Remember, the longer the wavelength, the greater the surface area of ground plane required. The ground plane radius for an 80m band vertical is ~21m (i.e. 1/4λ + 5%).

However, up on the 10m band the optimum angle is ~10˚ and this occurs at about 10m (or 1λ) above ground. The ground plane radius for a 10m band vertical should be ~2.625m (i.e. 1/4λ + 5%).

The TEV-1 doesn't necessarily need ground plane radials but adding radials will improve its performance.

The antenna is predrilled.
By following the simple instructions, you will find that the antenna is quite easy to assemble.

Some methods of feeding the antenna are:

  • Directly with a long wire into a high impedance tuning auto tuner (e.g. LDG, MFJ tuners or an Icom AH-4 or SGC-237), then into 50 ohm coax cable going back to the shack
  • By fitting a 4:1 balun at the feed point, then running 50 ohm coax to a tuner in the shack
  • Directly with 450 Ohm ribbon, then into a 4:1 balun and antenna tuner at the shack
  • Inductively, by fitting a series base loading coil. However, adding excessive inductance may make the antenna more difficult to tune on 10m, etc.




NEW!

TEV-1S is mail-able!

TEV-1S broadband COMPACT
5.45m long HF vertical

$249 AUD

The TET-Emtron model TEV-1S is a 5.45 metre long compact vertical broadband HF 80m~10m antenna. Requires an antenna tuner and/or a  balun of 4:1 impedance ratio or greater to reduce SWR across HF.

It comprises six 1m long sections of aluminium tubing, aluminium mounting bracket and hardware.

All stainless steel hardware and rugged aluminium construction ensure long and reliable operation. Appearance is similar to TEV-1.

As the packed length is <1.05m we can mail the TEV-1S to you!

The TEV-1S should be mounted on top of a metal pole. The antenna's height may be set from 30cm (one foot) above ground level to virtually any height above ground.

In the case of mounting the TEV-1S above a metal roof, it should be mounted at a height of at least 2m above the metal roof in order to reduce excessive ground reflection which causes higher radiation angle!

The minimal compromise height above ground for a vertical antenna operating 80m to 10m bands is 3m.

This is because on the 80m band the optimum radiation angle is ~30˚ and this occurs when the vertical is mounted at, or just above ground level. Remember, the longer the wavelength, the greater the surface area of ground plane required. The ground plane radius for an 80m band vertical should be ~21m (i.e. 1/4λ + 5%).

However, up on the 10m band the optimum angle is ~10˚ and this occurs at about 10m (or 1λ) above ground. The ground plane radius for a 10m band vertical is ~2.625m (i.e. 1/4λ + 5%).

The TEV-1S doesn't necessarily need ground plane radials but adding radials will improve its performance.

The antenna is predrilled.
By following the simple instructions, you will find that the antenna is quite easy to assemble.

Some methods of feeding the antenna are:

  • Directly with a long wire into a high impedance tuning auto tuner (e.g. LDG, MFJ tuners or an Icom AH-4 or SGC-237), then into 50 ohm coax cable going back to the shack
  • By fitting a 4:1 balun at the feed point, then running 50 ohm coax to a tuner in the shack
  • Directly with 450 Ohm ribbon, then into a 4:1 balun and antenna tuner at the shack
  • Inductively, by fitting a series base loading coil. However, adding excessive inductance may make the antenna more difficult to tune on 10m, etc.



TE-311 3-element 27MHz yagi
on a 3m long boom

$369 AUD

Plenty in stock!

DUAL-DRIVEN ELEMENTS

Driving both the radiating element
and the reflector provides over
double the SWR bandwidth of
a single radiating element and
increases F/S & F/B ratios too!!

Now includes TE-2060 balun!

High quality steel hardware and rugged marine grade 6000 series aluminium construction ensure long and reliable operation.

The TE-311 should be mounted at least 6m above ground on top of a metal pole.

If the TE-311 is to be installed above a metal roof, it should be mounted on top of a >6m long
metal pole installed on that roof.

By following the simple instructions, you will find the antenna is quite easy to assemble. The antenna is
partly pre-assembled and has predrilled holes.

Specifications are:

  • Frequency range; 26~29MHz
  • Element lengths: 5.3m
  • Boom length: 3m
  • Gain; 7dBi/4.8dBd
  • F/B ratio; 16dB
  • Feedpoint impedance: 50 Ω
  • SWR: < 1.5:1
  • Power handling: 500W p.e.p
  • Weight; 5kg.



TE-411 4-element 27MHz yagi
on a 4m long boom

$429 AUD

Sold out!

Place your order

**DUAL-DRIVEN ELEMENTS**

Driving both the radiating element
and the reflector provides over
double the SWR bandwidth of
a single radiating element and
increases F/S & F/B ratios too!!

Now includes TE-2060 balun!

High quality steel hardware and rugged marine grade 6000 series aluminium construction ensure long and reliable operation.
The TE-411 should be mounted at least 6m above ground on top of a metal pole.

If the TE-411 is to be installed above a metal roof, it should be mounted on top of a >6m long
metal pole installed on that roof.

By following the simple instructions, you will find the antenna is quite easy to assemble. The antenna is
partly pre-assembled and has predrilled holes.

Specifications are:

  • Frequency range; 26~29MHz
  • Element lengths: 5.3m
  • Boom length: 4m
  • Gain; 8dBi/5.8dBd
  • F/B ratio; 16dB
  • Feedpoint impedance: 50 Ω
  • SWR: < 1.5:1
  • Power handling: 500W p.e.p
  • Weight; 6kg.



TE-511 5-element 27MHz yagi
on a 5m long boom

$499 AUD

Plenty in stock!

DUAL-DRIVEN ELEMENTS

Driving both the radiating element
and the reflector provides over
double the SWR bandwidth of
a single radiating element and
increases F/S & F/B ratios too!!

Now includes TE-2060 balun!

High quality steel hardware and rugged marine grade 6000 series aluminium construction ensure long and reliable operation. The TE-511 has all stainless hardware.

The TE-511 should be mounted on top of a metal pole. The antenna should be mounted at least 6m above ground.

If the TE-511 is to be installed above a metal roof, it should be mounted on top of a >6m long
metal pole installed on that roof.

By following the simple instructions, you will find the antenna is quite easy to assemble. The antenna is
partly pre-assembled and has predrilled holes.

Specifications are:

  • Frequency range; 26~29MHz
  • Element lengths: 5.3m
  • Boom length: 5m
  • Gain; 8.5dBi/6dBd
  • F/B ratio; 16dB
  • Feedpoint impedance: 50 Ω
  • SWR: < 1.5:1
  • Power handling: 500W p.e.p
  • Weight; 8kg.



TE-611 6-element 27MHz yagi
on a 6m long boom

$599 AUD

In stock!

DUAL-DRIVEN ELEMENTS

Driving both the radiating element
and the reflector provides over
double the SWR bandwidth of
a single radiating element and
increases F/S & F/B ratios too!!

Now includes TE-2060 balun!

High quality steel hardware and rugged marine grade 6000 series aluminium construction ensure long and reliable operation. The TE-611 has all stainless hardware.

The TE-611 should be mounted on top of a metal pole. The antenna should be mounted at least 6m above ground.

If the TE-611 is to be installed above a metal roof, it should be
mounted on top of a >6m long
metal pole installed on that roof.

By following the simple instructions, you will find the antenna is quite easy to assemble. The antenna is
partly pre-assembled and has predrilled holes.

Specifications are:

  • Frequency range; 26~29MHz
  • Element lengths: 5.3m
  • Boom length: 6m
  • Gain; 10dBi/7.5dBd
  • F/B ratio; 16dB
  • Feedpoint impedance: 50 Ω
  • SWR: < 1.5:1
  • Power handling: 500W p.e.p
  • Weight; 9kg.
TEV-1 BROADBAND 3.5~30MHz vertical antenna
Type Price $(AUD)

The TEV-1 antenna itself is rated to 1kW pep on SSB.

The six aluminium 1.5m long telescoping tubes assemble to create a 8.5m long antenna. Packed length is 1.5m. Weight is 3kg., unpacked.

The strong aluminium U-channel mounting bracket is 37cm long x 50mm wide x 25mm high. The four supplied stainless steel U-bolts accept up to 35mm o.d. mast. Two specific TET insulators are included.

Active and earth feedpoint connections are made via two long stainless steel nuts and bolts. The active termination bolts to the lowest point on the antenna's lowest tube whilst the the earth contact bolts to the lowest point on the antenna's U-channel mounting bracket.

Proudly made by TET-Emtron in Perth, W.A., to our specifications.

The W2AU 4:1 balun provides an intermediary impedance step which ensures smooth impedance transformation and more stable operation.


 $279.00

TEV-1 antenna

Normally in stock!



TET-EMTRON TB-41 4:1 BALUN

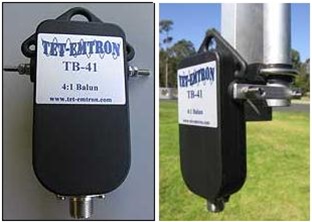

Left-hand photo shows TB-41 balun only.

Right-hand photo shows TB-41 mounted onto a TEV-1 broadband HF
vertical antenna using the optional BAL-BRAK aluminium straps kit.

We highly recommend the TEV-1 be fitted with a 4:1 balun (or 6:1
balun) as that creates an intermediary impedance transformation
step, allowing easier matching to 50 ohms via an antenna tuner.

Type Price $(AUD)
TB-41 4:1 BALUN.
Covers 3~30MHz. Rated to 1kW pep SSB RF 		$89.00
SOLD OUT!

DUE SOON...
BAL-BRAK. Balun mounting bracket kit has custom aluminium straps.
Adaptable kit it allows mounting of several different popular baluns.		 $19.00

MACO (USA) HF 27MHz antennas & accessories

Exclusive authorised MACO dealer for Australia!


MACO Super Laser 500

Type Price $(AUD)
SHOOTING STAR 8-element vertical-horizontal beam with screen reflector.
Has 14dBi gain and up to 38dB F/B ratio.

This fine antenna can be driven in horizontal polarity and/or in vertical polarity beam. It can be switched from horizontal to vertical polarity.
It can be driven in both horizontal and vertical polarity at the same time.
Coaxial cables, coaxial connectors, coaxial switches, etc., are all optional and at extra cost.

Has 4.9m/16' long boom of 51mm/2" diameter. Weighs 14kg.

Pricing based on prevailing exchange rate and sea freighting from USA

 P.O.A.
Sold out!

Please place your order with deposit



V-QUAD, 2-element V-quad (horizontal or vertical polarity mounting).
Has 11dBi gain and up to 25dB F/B ratio.

Has 1.8m/6' long boom of 38mm/1.5" diameter. Weighs 3.6kg.


Pricing based on prevailing exchange rate and sea freighting from USA

 P.O.A.
Sold out!

Please place your order with deposit
VQ-3, 3-element V-quad (horizontal or vertical polarity mounting)
Has 14.5dBi gain and up to 30dB F/B ratio.

Has 4m/13'4" long boom of 51mm/2" diameter. Weighs 10kg.

Pricing based on prevailing exchange rate and sea freighting from USA

 P.O.A.
Sold out!

Please place your order with deposit
M103C 3-element yagi beam.
Has 11dBi gain and up to 25dB F/B ratio.

Has 3.5m/11.5' long boom of 38mm/1.5" diameter. Weighs 6.3kg.


P.O.A.
Sold out!

Please place your order with deposit

M104C 4-element yagi beam.
Has 14dBi gain and up to 29dB F/B ratio.

Has 4.9m/16' long boom of 51mm/2" diameter. Weighs 11.3kg.

Pricing based on prevailing exchange rate and sea freighting from USA

 P.O.A.
Sold out!

Please place your order with depositt
M105C 5-element yagi beam.
Has 15.5dBi gain and up to 31dB F/B ratio.

Has 8m/26' long boom of 51mm/2" diameter. Weighs 15.9kg.


Pricing based on prevailing exchange rate and sea freighting from USA		 P.O.A.
Sold out!

Please place your order with deposit
LASER 400 12-element vertical-horizontal yagi beam.
Has 17dBi gain and 40~44dB F/B ratio.

Has 9.5m/31' long boom of 51mm/2" diameter. Weighs 24kg.

Pricing based on prevailing exchange rate and sea freighting from USA		 P.O.A.
Sold out!

Please place your order with deposit
SUPER LASER 500 16-element vertical-horizontal yagi beam.
Has 18dBi gain and up to 46dB F/B ratio. See illustration above...

Has 12.2m/40' long boom of 76mm/3" diameter. Weighs 32kg.

Pricing based on prevailing exchange rate and sea freighting from USA		 P.O.A.
Sold out!

Please place your order with deposit
V58A 5/8-wave 27MHz vertical with ground plane radials.
Total length is 6.3m/20'8" and is adjustable .
V58A is rated to accept up to 1.2kW p.e.p. on SSB!		  $379.00
Plenty in stock!
Prices subject to change due to exchange rate variations, etc.
Listed prices are confirmed for all MACO products in our stock.
MACO antennas are available via sea freight or air courier.
Air courier or air freight service from the USA is at extra cost.
Deposit is required only when we confirm we can supply the MACO  product/s you wish to order & when we're organising a new shipment. 		 Please call for pricing
regarding other MACO antennas and their availability
M2 (USA) antennas & power dividers, etc.
Type Price $(AUD)

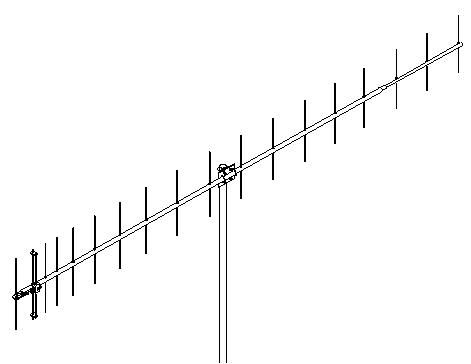

M2 440-18 70cm band, 420~452MHz, 18-element yagi on 3.48m/11'5" boom of 25mm-to-19mm dia. Mast dia. ~50mm (2"). Gain is 16.64dBi. Typically 23dB F/B. Accepts up to 1.5kW. Weighs 2.3kg.

 P.O.A.

Sold out!

Place your order with deposit!
70CM2PRTPD 70cm band TWO-PORT Power Divider fitted with three N-sockets. Frequency range 420~450MHz. Minimal loss of <0.1dB! Accepts up to 3kW (connector limited). Length 23cm. Weighs 450g.

P.O.A.

Sold out!

Place your order with deposit!
All M2 products available. Deposit required when we confirm we can supply the product/s you wish to order.  Contact us

Limited stocks of Maldol antennas and accessories

Maldol mobile mounting bracket...only A$29 each!


EM-B80 Mini gutter grip...A$29

Type Price $(AUD)
EM-B80 Mini gutter grip mount. Has 2-axes tilt function. $29.00
Maldol BNC handheld antennas
Type Price $(AUD)
AHW-25 (flexible) 2m/70cm TX/RX plus 300~500MHz & 800~900MHz receive only. 26.5cm long $39.00
Maldol SMA adaptors
Type Price $(AUD)
SMA-M plug (front),  BNC-F jack (rear), black  $10.00
Andrews Communications Systems
Shop 8, 41-51 Bathurst St, Greystanes, NSW 2145
Telephone: (02) 9636 9060, (02) 9688 4301, (02) 9896 8972
